¡á

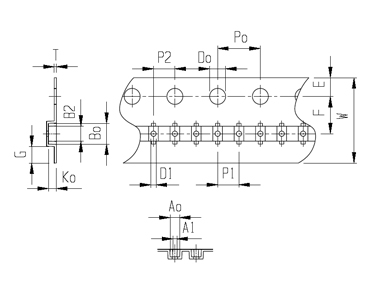

SPECIFICATIONS
ITEM
SYMBOL
SPECIFICATIONS
NOTE
DIMENSION (MM)
TOLERANCE
OVERALL DIMENSONS
TAPE WIDTH
W
8.0
¡¾0.20
DISTANCE
G
0.75
MIN.
SPROCKET HOLES
DIAMETER
D0
1.5
¡¾0.10
CUM.PITCH ERROR
¡¾0.10/10PITCH
DISTANCE
E
1.75
¡¾0.10
PITCH
P0
4.0
¡¾0.10
DISTANCE BETWEEN CENTER LINES
LENGTH DIRECTION
P2
2.0
¡¾0.05
WIDTH DIRECTION
F
3.5
¡¾0.05
COMPARTMENTS
LENGTH
A0
0.90
¡¾0.05
INDEX DISTANCE
A1
0.39
¡¾0.05
WIDTH OVERALL
B0
1.95
¡¾0.05
WIDTH
B2
1.40
¡¾0.05
DEPTH
K0
0.73
¡¾0.05
HOLE DIAMETER
D1
0.5
¡¾0.05
PITCH
P1
2.0
¡¾0.05
VERTICAL ANGLE OF WALL AT CROSS SECTION VIEW
SEE DRAWING

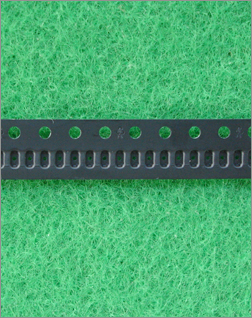

CARRIER TAPE ANTISTATIC
FILM THICKNESS
T
0.20
¡¾0.02
CONDUCTIVE POLYCARBONATE BLACK IN COLOR 100% RECYCLABLE
BENDING RAD
BEND
DT
0.3
MAX.
IN WINDING DIRECTION
R
30
MIN.
