¡á
SPECIFICATIONS
ITEM
SYMBOL
SPECIFICATIONS
NOTE
DIMENSION (MM)
TOLERANCE
OVERALL DIMENSONS
TAPE WIDTH
W
8.0
+0.30, -0.10
SPROCKET HOLES
DIAMETER
D0
1.5
¡¾0.10
CUM.PITCH ERROR
¡¾0.10/10PITCH
DISTANCE
E
1.75
¡¾0.10
PITCH
P0
4.0
¡¾0.10
DISTANCE BETWEEN CENTER LINES
LENGTH DIRECTION
P2
2.0
¡¾0.05
WIDTH DIRECTION
F
3.5
¡¾0.05
COMPARTMENTS
LENGTH
A0
3.06
¡¾0.10
INDEX DISTANCE
A1
1.00
WIDTH OVERALL
B0
2.84
¡¾0.10
WIDTH
B2
2.18
¡¾0.10
DEPTH
K0
1.27
¡¾0.10
HOLE DIAMETER
D1
1.0
MIN.
PITCH
P1
4.0
¡¾0.10
VERTICAL ANGLE OF WALL AT CROSS SECTION VIEW

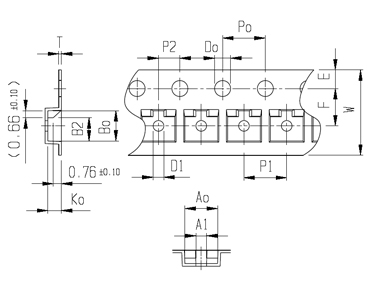

SEE DRAWING
CARRIER TAPE ANTISTATIC
FILM THICKNESS
T
0.25
¡¾0.05
CONDUCTIVE POLYCARBONATE BLACK IN COLOR 100% RECYCLABLE
BENDING RAD
BEND
DT
0.3
MAX.
IN WINDING DIRECTION
R
30
MIN.
